AC 300 F | AC 450 F

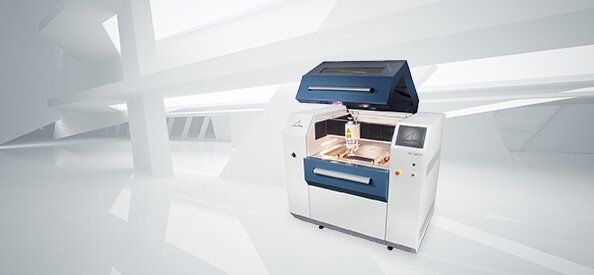

Fiber laser cutting is simplified with the AC 300 F Flexible Laser Cutting System which can cut materials up to 3mm in thickness. From a basic geometric form to ornate jewelry made of precious metal, the AC 300 F Laser Cutter cuts automatically, quickly and accurately.

The AC 300 F Flexible Fiber Laser Cutting System cuts materials up to 3mm in thickness, from basic geometric forms to complex, ornate jewelry made of precious metal. The AC 300 F Laser Cutter cuts automatically, quickly and accurately.

CAD-generated cutting paths are converted within minutes and can be cut directly – ideal for prototypes and small series. With a small footprint of 1,340mm × 1,180mm, the compact AC 300 F Flexible Fiber Laser Cutting System offers a spacious work area of 500mm × 500mm, where plates of arbitrary lengths and widths (up to 500mm) can be processed.

The fully automatic laser cutting process is operated via an intuitive touchscreen and takes place in the closed, laser-safe working chamber, observed through a large protection window.

The nesting function on the AC 300 F Fiber Laser Cutter shines, especially in mass production, with an optimized use of materials to prevent unnecessary waste. Precious metal residues are collected for reuse.

Depending on your needs, fiber laser sources with 150 – 300 W of laser power are available.

AC 450 F LASER CUTTING SYSTEM

The AC 450 F Flexible Laser Cutter allows you to cut sheets of material quickly and accurately, from basic geometric forms to complex items made of precious metal. Features a small footprint and a spacious work area.

The AC 450 F Flexible Laser Cutting System allows you to cut sheets of material up to 3 mm in thickness quickly and accurately, from basic geometric forms to complex items made of precious metal. This laser cutter is ideal for prototypes and small series, as CAD-generated cutting paths are converted quickly and can be cut directly.

With a small footprint of 1.340 × 1.180 mm, the compact AC 450 F Laser Cutter offers a spacious 500 × 500 mm work area, where plates of arbitrary lengths and widths can be processed. Automatic cutting takes place in a closed, laser-proof working chamber, operated via an intuitive touchscreen and monitored through a large protection window.

The AC 450 F Laser Cutting System has a unique nesting function which is especially well suited to mass production applications to facilitate the collection of precious metal residues to be reused later. This allows the optimized use of materials, preventing unnecessary waste.
